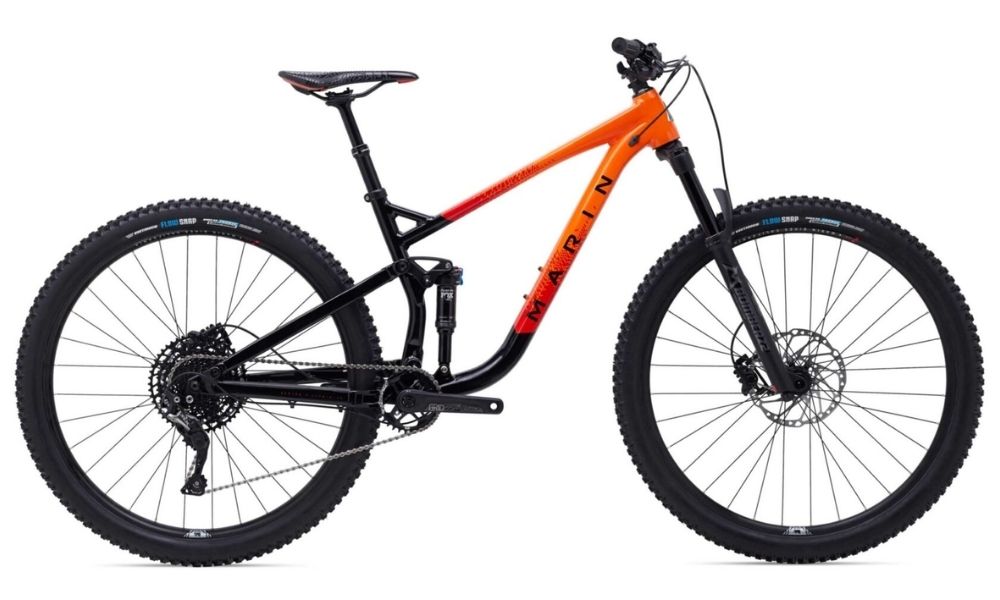

Marin 2022 Rift Zone 3 29
FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS
The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Marin 2022 Rift Zone 3 29
Frame
Colour: Black/OrangeFrame: Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork: Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Shock: Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Weight: N/A
Drivetrain
Crankset: FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost SpacingPedals: N/A
Chain: KMC X-12 Silver and Black
Bottom Bracket: Mego EXO 73mm BSA
Rear Derailleur: Shimano SLX SGS, Direct Attachment, 12-Speed
Front Derailleur: N/A
Derailleur Shifter: Shimano SLX, 12-Speed, SL-6100IR
Freewheel/Cassette: SunRace, 12-Speed, 11-51T, ED Black
Wheels
Tyres: Vee Tire Co, Flow Snap, 29x2.35, Tackee Compound, 72 TPI, Tubeless CompatibleWheels/Rims: Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Hubs: Front: Forged Alloy, 110x15mm, 32H Rear: Forged Alloy, 148x12mm, Quad Sealed Bearings, 32H, Standard Freehub Body
Braking System
Brakes: Front: Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor Rear: Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm RotorBrake Levers: Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
Other
Handle Bar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º BackStem: Marin 3D Forged Alloy, 35mm
Seat Post: X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
Saddle: Marin Speed Concept
Marin 2022 Rift Zone 3 29
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 602.6 | 607.15 | 611.7 | 616.25 |
| REACH | 430 | 455 | 480 | 505 |
| HEADTUBE ANGLE | 65.5° | 65.5° | 65.5° | 65.5° |
| HEADTUBE LENGTH | 100 | 105 | 110 | 115 |
| SEATTUBE ANGLE | 76° | 76° | 76° | 76° |
| SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
| TOPTUBE EFFECTIVE | 580.24 | 606.36 | 632.51 | 658.6 |
| BB HEIGHT | 344 | 344 | 344 | 344 |
| BB DROP | 34 | 34 | 34 | 34 |
| CHAINSTAY | 425 | 425 | 425 | 425 |
| WHEELBASE | 1158.92 | 1186 | 1213 | 1240.1 |
| STANDOVER HEIGHT | 691.84 | 697.1 | 717.83 | 721.97 |
| FORK OFFSET | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
