Description

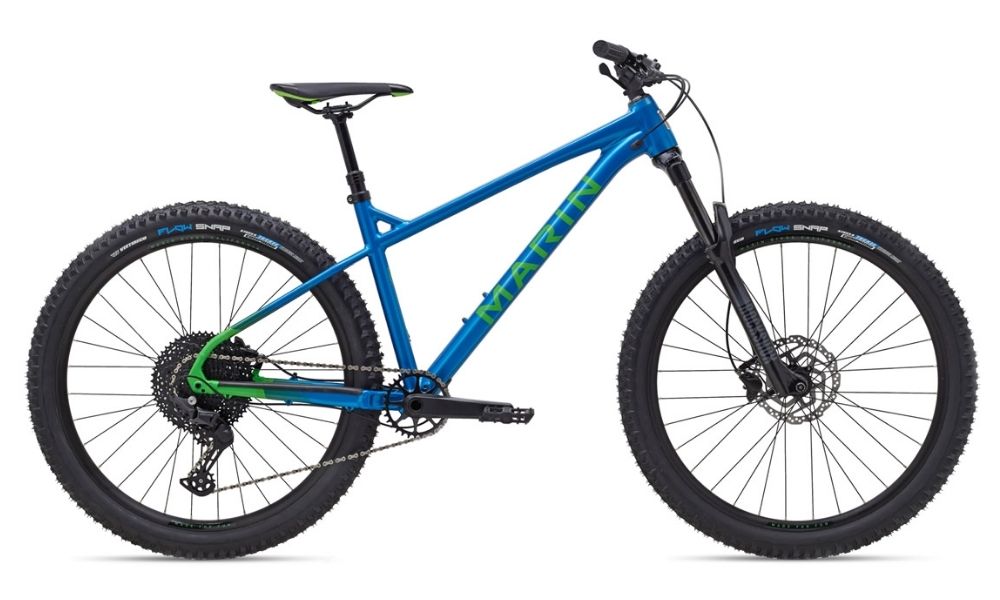

Marin 2022 San Quentin 2
DOWNHILL TRAILS
LIGHT DIRT JUMP
ENDURO
The San Quentin is for the aggressive hardtail trail rider looking for a blend between singletrack capabilities and extended air time.
Specifications
Marin 2022 San Quentin 2
Frame
Colour: Gloss Blue/Green/BlackFrame: Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, External Brake, 12x148mm Thru-Axle, 73mm Threaded BB
Fork: RockShox Recon RL, 110x15mm Boost Spacing, Fast Black Stanchions, 130mm Travel, Bolt-On Thru-Axle, 37mm Offsetl
Shock: N/A
Weight: N/A
Drivetrain
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost SpacingPedals: N/A
Chain: KMC X-11 Silver and Black
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Shimano Deore, 11-Speed, SGS
Front Derailleur: N/A
Derailleur Shifter: Shimano Deore, 11-Speed, SL-5100R
Freewheel/Cassette: SunRace, 11-Speed, 11-51T, ED Black
Wheels
Tyres: Vee Tire Co, Flow Snap, 27.5x2.6", MPC Compound, Wire BeadWheels/Rims: Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Hubs: Front: Shimano HF-MT400B, 110x15mm, Centerlock Rear: Shimano HF-MT400B, 148x12, Centerlock, Standard Freehub Body
Braking System
Brakes: Shimano BR-MT201 Hydraulic Disc Brake, 180mm RotorBrake Levers: Shimano BR-MT201 Hydraulic Disc
Other
Handle Bar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º BackStem: Marin 3D Forged Alloy, 35mm
Seat Post: TranzX, YSP18, 1x Remote, Size S 125mm Travel, Size M-XL 150mm Travel, 30.9mm
Saddle: Marin Speed Concept
Geometry
Marin 2022 San Quentin 2
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 586.1 | 590.7 | 599.7 | 604.3 |
| REACH | 422 | 444 | 464 | 484 |
| HEADTUBE ANGLE | 65° | 65° | 65° | 65° |
| HEADTUBE LENGTH | 105 | 110 | 120 | 125 |
| SEATTUBE ANGLE | 75° | 75° | 75° | 75° |
| SEATTUBE LENGTH | 385 | 430 | 475 | 515 |
| TOPTUBE EFFECTIVE | 579.1 | 602.3 | 624.7 | 645.9 |
| BB HEIGHT | 310 | 310 | 310 | 310 |
| BB DROP | 50 | 50 | 50 | 50 |
| CHAINSTAY | 425 | 425 | 425 | 425 |
| WHEELBASE | 1144.8 | 1168.9 | 1193.1 | 1215.3 |
| STANDOVER HEIGHT | 664 | 677 | 714 | 745 |
| FORK OFFSET | 37 | 37 | 37 | 37 |
| SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
| STEM LENGTH | 35 | 35 | 35 | 35 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
