Liv 2025 Langma Advanced SL 1
Please contact store for availability 04 589 2822 or support@cyclescience.co.nz
It’s Langma Season.
The official bike of WorldTeam Liv AlUla Jayco, the Langma Advanced SL is the queen of all-rounder performance. The race-engineered frameset and components are seamlessly integrated, delivering the efficient power transfer you need to rule the mountains. Superior control and aerodynamics slingshot you through the finish in a blur of glory.
QOM-LEVEL EFFICIENCY
The new frameset includes an all-new Variant Integrated Seatpost, which means less weight, greater compliance, and improved aero performance—turning every pedal stroke into a burst of “let’s go.”
LIMIT-PUSHING CONTROL
The flared handlebar injects control and confidence into those explosive sprints and bomber descents. Ready to race the cobbles? Run up to 33mm tires, without sacrificing precise handling.
GAP-WIDENING AERO
With a truncated ellipse tube shape, the new frameset is built to slice through wind and pelotons. A new internal cable routing design delivers a streamlined cockpit and added aero advantage.

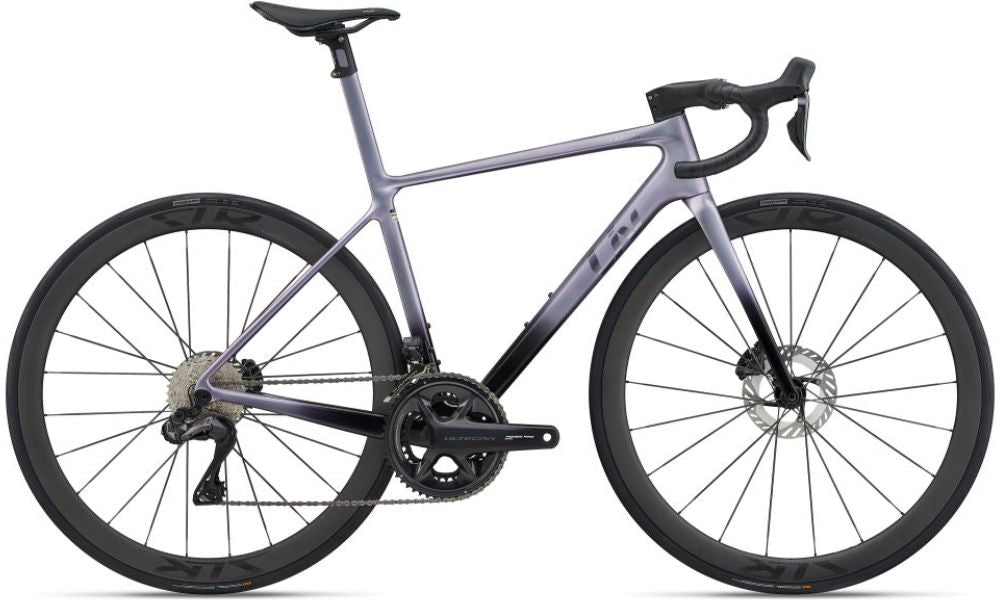

Luv 2025 Langma Advanced SL 1
Frame
Colour: Cosmic Dust
Frame: Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc
Fork: Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc
Shock: NA
Drivetrain
Crankset: Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:165mm, S:170mm, M:170mm, L:172.5mm
Pedals: NA
Chain: Shimano Ultegra
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Ultegra Di2 FD-R8150
Front Derailleur: Shimano Ultegra Di2 FD-R8150
Derailleur Shifter: Shimano Ultegra Di2 FD-R8170
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x34
Braking System
Brakes: Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers: Shimano Ultegra Di2
Wheels
Tyres: CADEX Race GC, tubeless, 700x28c (28mm), folding
Wheels/Rims: Giant SLR 0 40 WheelSystem, [F]40mm, [R]40mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 40t ratchet driver, CenterLock, 12mm thru-axle
Other
Handlebar: Liv Contact SLR XS:34/36cm, S:36/38cm, M:38/40cm, L:39/42cm
Stem: Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, L:110mm
Saddle: Liv Alacra SLR
Seat Post: Advanced SL-Grade composite, integrated design, -5/+15mm offset
Liv 2025 Langma Adnvanced SL 1
-
- XXS
-
145 cm
157 cm
-
- XS
-
152 cm 163 cm
-
- S
-
158 cm 169 cm
-
- M
-
164 cm 176 cm
-
- L
-
170 cm 183 cm
| XXS | XS | S | M | L | ||
| A | Seat Tube Length (MM) | 600 | 640 | 680 | 720 | 760 |
| B | Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 73.5° |
| C | Top Tube Length (MM) | 498 | 508 | 524 | 540 | 555 |
| D | Head Tube Length (MM) | 105 | 120 | 135 | 155 | 175 |
| E | Head Tube Angle | 70.0° | 71.0° | 72.0° | 72.5° | 72.5° |
| F | Fork Rake (MM) | 49 | 49 | 49 | 49 | 49 |
| G | Trail (MM) | 74.0 | 68.0 | 61.0 | 58.0 | 58.0 |
| H | Wheelbase (MM) | 970 | 973 | 977 | 984 | 994 |
| I | Chain Stay Length (MM) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (MM) | 72 | 72 | 69 | 69 | 69 |
| K | Stack (MM) | 499 | 517 | 532 | 553 | 572 |
| L | Reach (MM) | 364 | 370 | 377 | 382 | 386 |
| M | Stand Over Height (MM) | 685 | 707 | 736 | 763 | 783 |
| O | Stem Length (MM) | 80 | 80 | 90 | 100 | 110 |
| P | Crank Length (MM) | 165 | 165 | 170 | 170 | 172 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
*Specialized Bicycles are available for home delivery nation wide.
