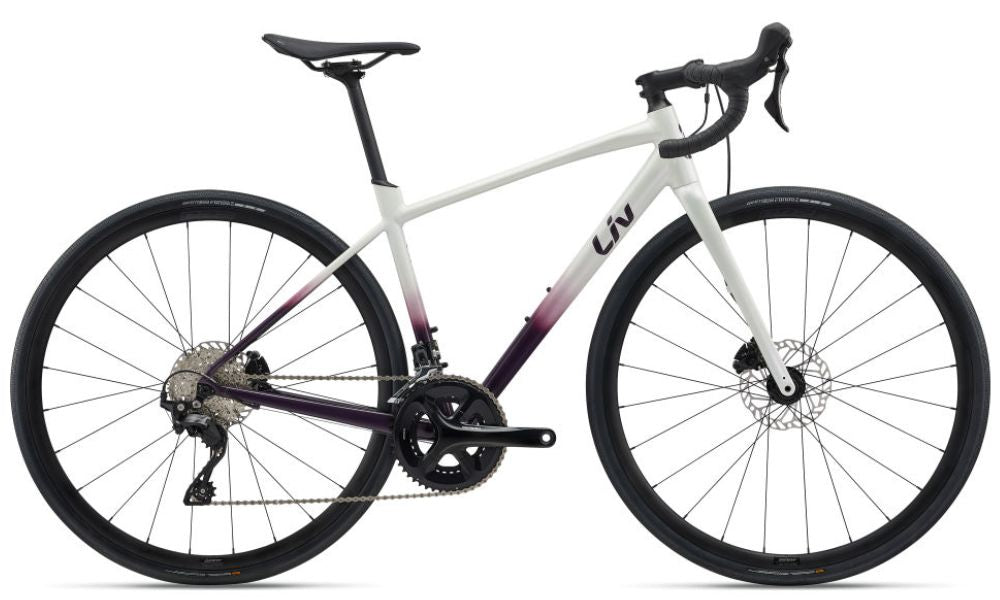

Liv 2025 Avail AR 1
Liv 2025 Avail AR 1
Frame
Colour: Fancy White
Frame: ALUXX-Grade aluminium, 12x142mm thru-axle, disc
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm, disc
Shock: NA
Drivetrain
Crankset: Shimano RS520, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm
Pedals: NA
Chain: KMC X12
Bottom Bracket: Cartridge
Rear Derailleur: Shimano 105
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105
Freewheel/Cassette: Shimano 105, 12-speed, 11x36
Braking System
Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano 105
Wheels
Tyres: Giant Gavia Fondo 2, tubeless, 700x32c
Wheels/Rims: Giant P-R2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Liv D-Fuse SL, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm
Stem: Giant Contact XS:70mm, S:80mm, M:90mm, L:90mm
Saddle: Liv Approach
Seat Post: Giant D-Fuse, composite
Liv 2025 Avail AR 1
-
- XXS
-
145 cm
156 cm
-
- XS
-
153 cm 162 cm
-
- S
-
158 cm 169 cm
-
- M
-
165 cm 174 cm
-
- L
-
171 cm 182 cm
| XXS | XS | S | M | L | ||
| A | Seat Tube Length (MM) | 375 | 410 | 445 | 480 | 515 |
| B | Seat Tube Angle | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° |
| C | Top Tube Length (MM) | 502 | 515 | 525 | 540 | 555 |
| D | Head Tube Length (MM) | 103 | 118 | 138 | 158 | 178 |
| E | Head Tube Angle | 70.0° | 70.5° | 71.5° | 72.0° | 72.0° |
| F | Fork Rake (MM) | 53 | 53 | 53 | 53 | 53 |
| G | Trail (MM) | 72.8 | 69.5 | 62.9 | 59.6 | 59.6 |
| H | Wheelbase (MM) | 994 | 999 | 1001 | 1006 | 1022 |
| I | Chain Stay Length (MM) | 422 | 422 | 422 | 422 | 422 |
| J | Bottom Bracket Drop (MM) | 80 | 80 | 80 | 80 | 80 |
| K | Stack (MM) | 522 | 538 | 561 | 582 | 601 |
| L | Reach (MM) | 362 | 366 | 369 | 373 | 383 |
| M | Stand Over Height (MM) | 653 | 681 | 709 | 736 | 766 |
| O | Stem Length (MM) | 70 | 70 | 80 | 90 | 90 |
| P | Crank Length (MM) | 165 | 165 | 170 | 170 | 172 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
*Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.
*Specialized Bicycles are available for home delivery nation wide.
