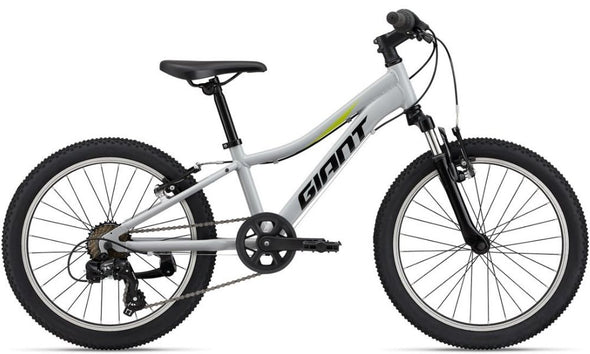

Giant 2022/23 XtC Jr 20
Here’s a ticket to hit the trail. The XtC Jr. 20 is the perfect way to introduce young riders to off-road riding.
Lightweight Frame
ALUXX-grade aluminum frame provides a lightweight, purpose-built chassis for aspiring young off-road riders.
Confidence and Control
Size-specific wheels and front suspension give young riders the performance they need for true off-road riding.
Kid-Friendly Features
Youth-specific performance components help young riders improve their off-road skills.
Giant 2022/23 XtC Jr 20
Frame
Colour: Good Gray
Frame: ALUXX-Grade aluminium
Fork: HL steel, 50mm
Shock: N/A
Weight: N/A
Drivetrain
Crankset: Alloy, 32t, 127mm
Pedals: N/A
Chain: KMC HV500
Bottom Bracket: Semi-cartridge
Rear Derailleur: Shimano Tourney
Front Derailleur: N/A
Derailleur Shifter: Shimano REVOSHIFT, 1x7
Freewheel/Cassette: 14x28
Wheels
Tires: Giant Junior Sport, 20x2.1", 22 tpi
Wheels/Rims: Giant Kids 20", alloy
Hubs: Nutted, 28h
Braking System
Brakes: Alloy, linear pull
Brake Levers: Alloy, junior MTB
Other
Handle Bar: Giant Sport, alloy, 31.8mm
Stem Headset: Forged alloy Ahead, 8-degree
Grips: Giant Junior
Saddle: Giant Jr. Sports
Seat Post: Alloy, 27.2mm
Extras
Bell, kickstand
Giant 2022/23 XtC Jr 20
| ONE SIZE | ||
|---|---|---|
| A | SEAT TUBE LENGTH (mm) | 254 |
| B | SEAT TUBE ANGLE | 72.0° |
| C | TOP TUBE LENGTH (mm) | 450 |
| D | HEAD TUBE LENGTH (mm) | 120 |
| E | HEAD TUBE ANGLE | 69.0° |
| F | FORK RAKE (mm) | 38 |
| G | TRAIL (mm) | 58.5 |
| H | WHEELBASE (mm) | 889 |
| I | CHAIN STAY LENGTH (mm) | 375 |
| J | BOTTOM BRACKET DROP (mm) | 0 |
| K | STACK (mm) | 393 |
| L | REACH (mm) | 323 |
| M | STAND OVER HEIGHT (mm) | 524 |
| O | STEM LENGTH (mm) | 60 |
| P | CRANK LENGTH (mm) | 140 |
| Q | WHEEL SIZE | 20" |
