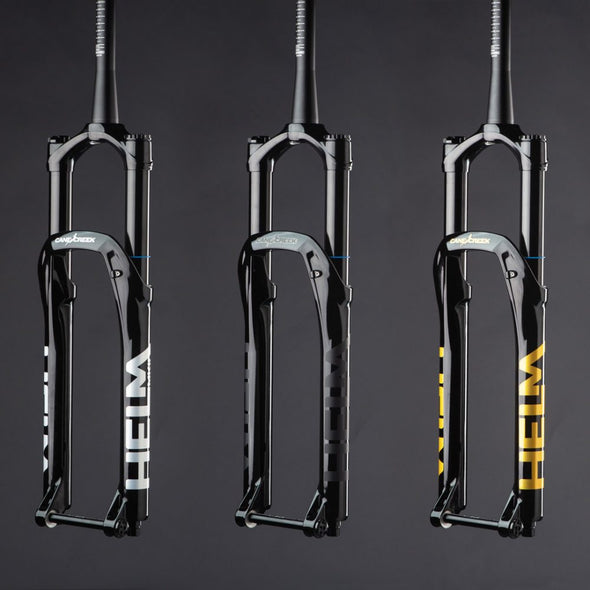

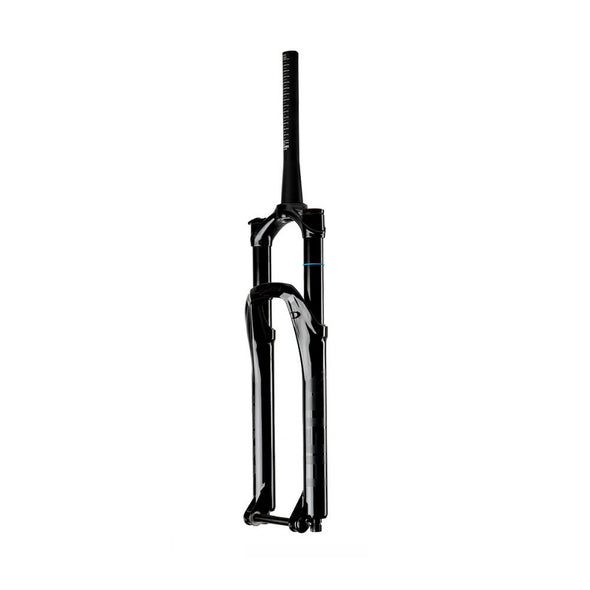

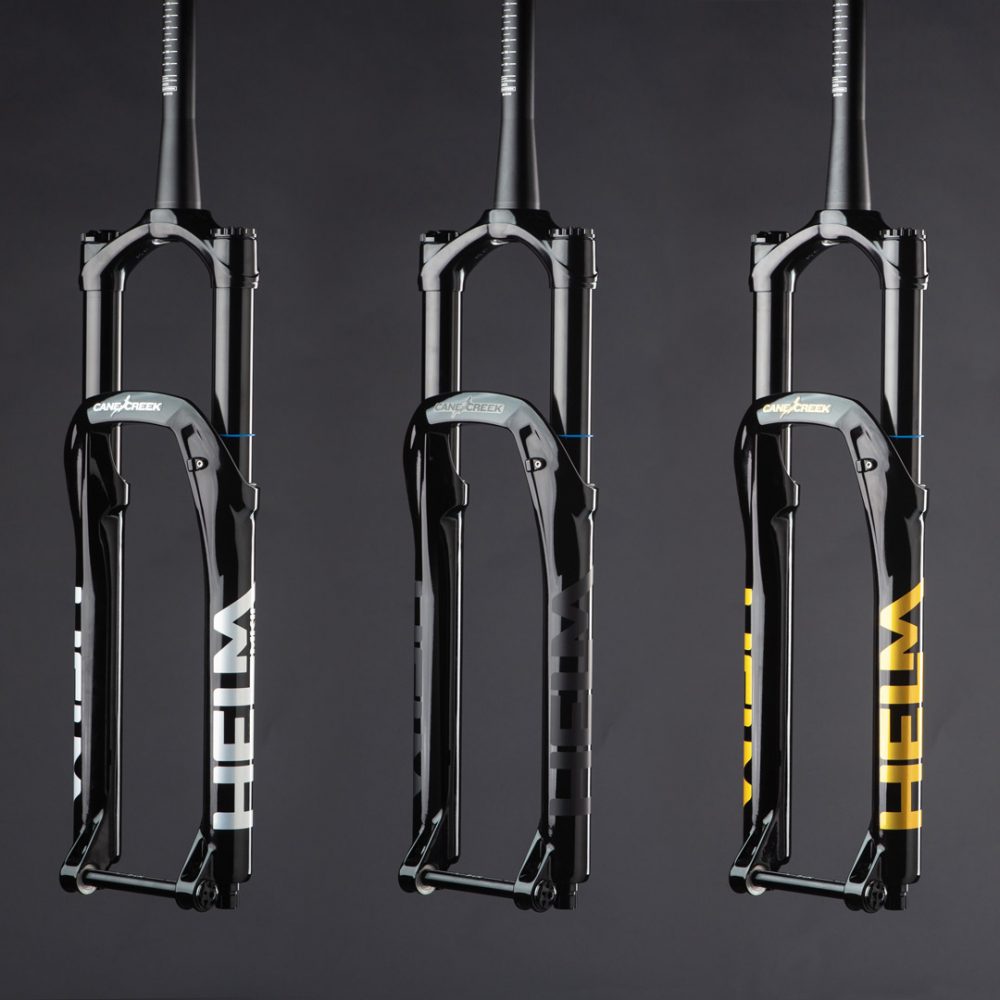

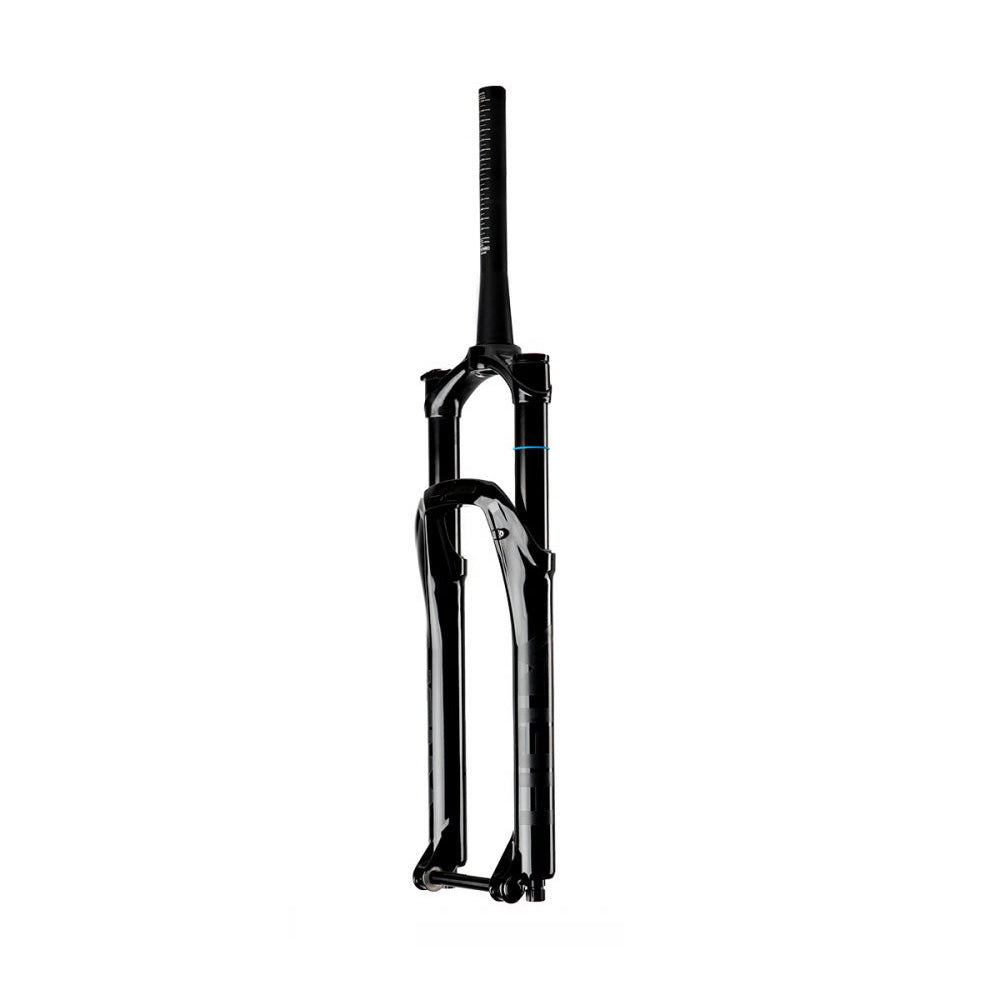

CANE CREEK HELM MKII

We are proud to announce the release of the new Helm MKII suspension fork.  The Helm MKII will be our first major revision of the Helm fork lineup and improves on its predecessor in nearly every way.

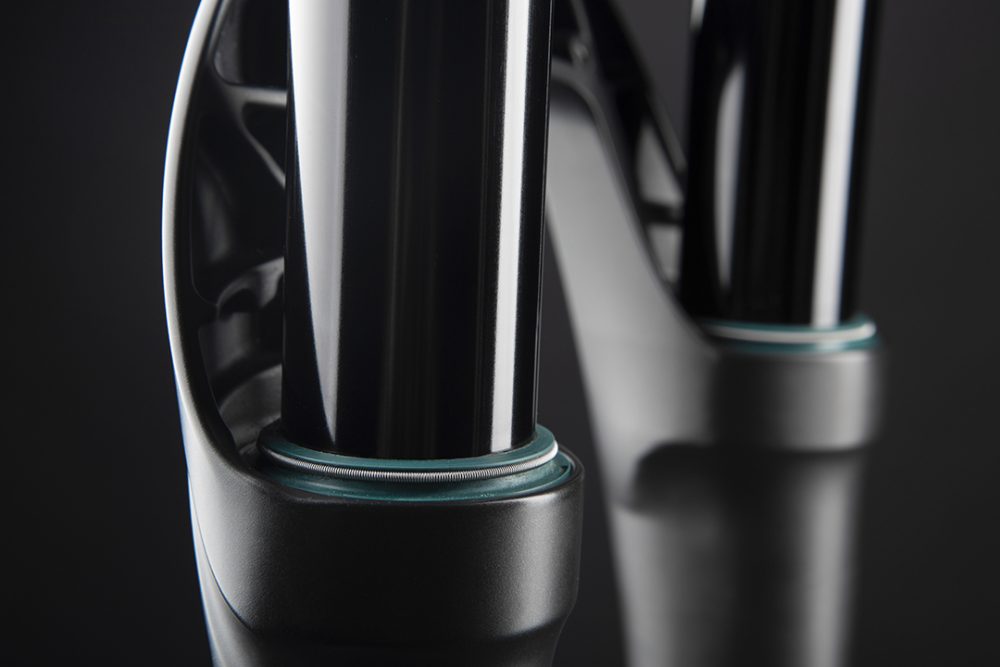

The HELM MKII newly designed damper features a new compression and mid-valve circuit for increased support and control while a new SKF oil seal head and 2.5 weight damper oil reduce friction and provide a more supple ride-feel.

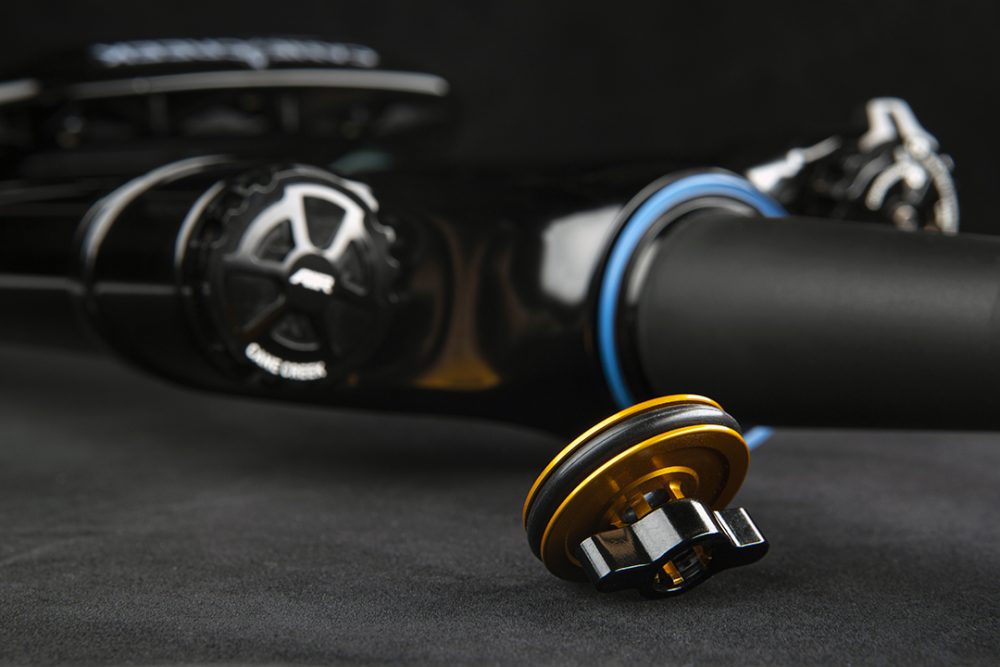

The Helm MKII redesigned air spring has a new air piston designed to reduce friction, an increased air volume for better traction and suppleness, and a threadless seal head for easier travel change. In addition to the updated damper and air spring, the HELM MKII features a variety of external usability improvements including easier to turn knobs and a D-LOC bolt-on axle.

SPECIFICATONS


WEIGHT 2080 grams

DAMPING High Speed Compression, Low Speed Compression, Low Speed Rebound
ADJUSTMENTS

• High speed compression (10 positions)
• Low speed compression (17 positions)
• Low speed rebound (10 positions)
• Independent positive air spring
• Independent negative air spring
• Indexed travel adjust system (8 positions)

SPRING Double-Air spring system. High volume positive and negative air springs
STANCHION DIAMETER 35mm
TRAVEL Optimized for 130-160mm of travel
TRAVEL ADJUSTMENT Internal, 10mm Increments (160mm down to 130mm) 2 Travel spacers included
AXLE / SPACING / OFFSET "D-Loc" 15mm Bolt-on thru axle  / 15mm x 110 BOOST spacing / 51mm and 44mm
MAX TIRE SIZE 64mm wide by 749mm tall (29) / 75mm wide by 739mm tall (27.5+)
COLOR Gloss Black
