- Description

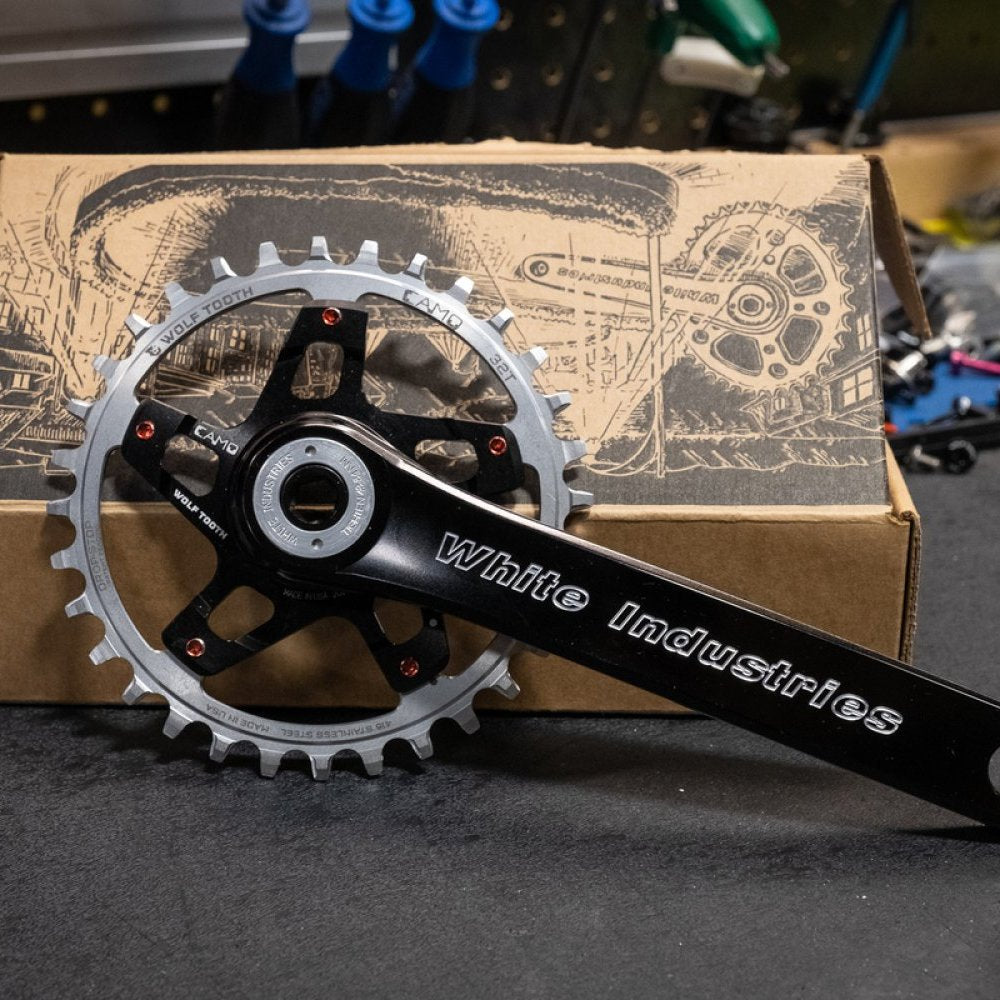

Now available in ultra-durable stainless steel. We created CAMO (Chainline And Material Optimization) for direct mount style cranksets. Easily swap between chainrings on a whim and enjoy a variable selection of chainring options, all compatible with your selected CAMO spider or BashSpider. With no nuts or spacers involved, swapping chainrings takes less time than brewing a cup of your favorite beverage.
NOTE - This is aCAMO chainring only. A CAMO Spider is required to complete this system.
KEY ADVANTAGES
- Perfect chainline for wear and shifting precision
- Optimal material usage for weight, stiffness, and wear
- Spend less for chainring swapping by buying only the chainring, compared to chainrings that have an integrated spider
- Swapping chainrings is very fast with only five small bolts and no nuts
- Availability, as Wolf Tooth has many direct mount options: round or oval, stainless or aluminum, for several cranksets.
- Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile for the ultimate chain retention and mud shedding ability
- CAMO mounting bolts are included with each spider.
On top of all the CAMO advantages, our stainless steel chainrings last 5-10 times longer than the same ring in aluminium.
COMPATIBILITY
- This is a chainring for Wolf Tooth CAMO spiders. It is NOT compatible with any other chainring mountings.
- CAMO spiders come with Stainless Steel Bolts.
- Chainline - varies by which spider you choose
- Use Drop-Stop A for all 9, 10, and 11spd chains or 12-speed SRAM Eagle, KMC, Connex or Wippermann chains. Not compatible with SRAM AXS Flat Top, Shimano 12-speed HG+ or 13-speed Campagnolo chains
DROP-STOP TECHNOLOGY
Wolf Tooth’s patented Drop-Stop® wide/narrow tooth profile delivers ultimate chain retention and mud shedding ability. See below for Drop-Stop A compatibility.
RECOMMENDATIONS / INSTALLATION NOTES
- We recommend the use of a clutch style rear derailleur for the best chain security.
- If you plan to ride in very muddy conditions, we recommend a chainguide or chainkeeper in addition to a clutch-type rear derailleur. Without these precautions, you may experience chaindrops and/or chainsuck.
- You will be able to access all bolts without removing the spider
- Line up the little dot on the ring with the dot on the spider. Don't worry, you cannot install the ring in the wrong rotational orientation.
- Be sure the bosses on the spider "plug in" to the chainring.
- Torque bolts only to 4-5 Nm and use blue Loctite threadlocker
SPECIFICATIONS
Weight: 28t • 65g | 30t • 77g | 32t • 89g

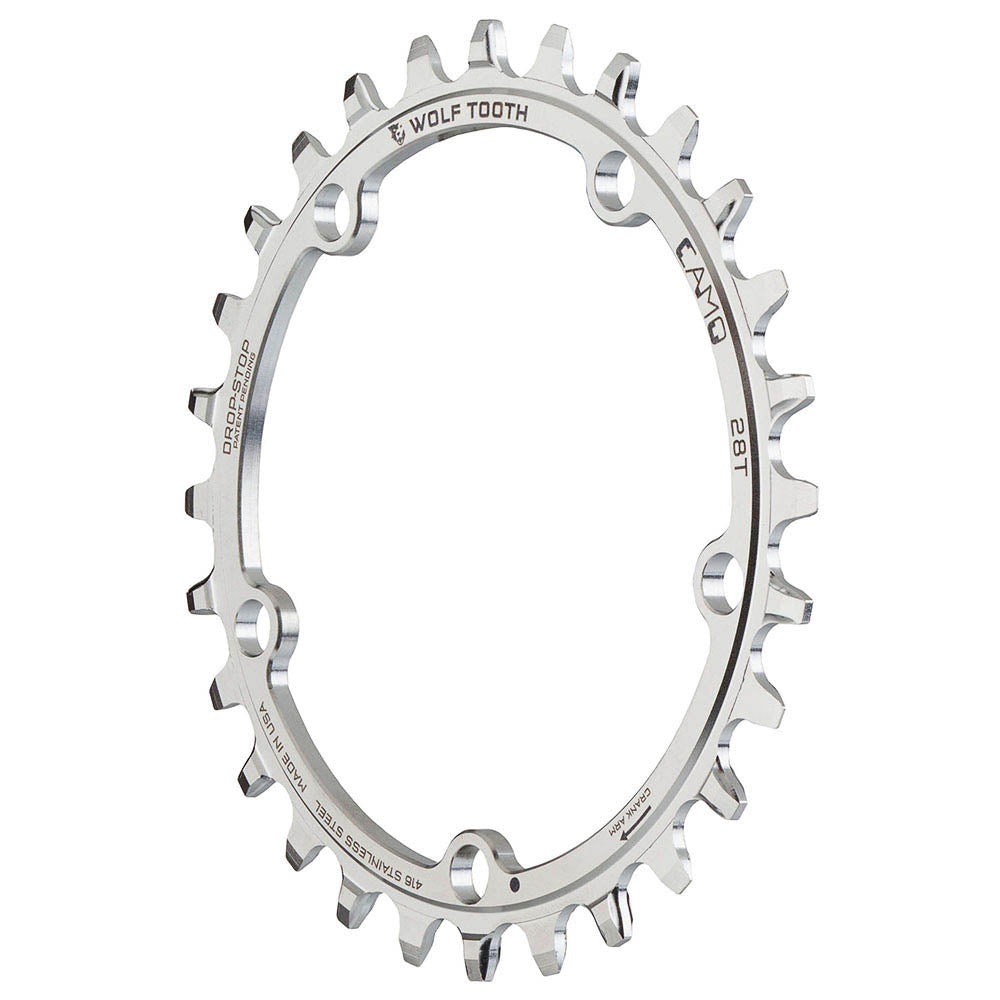

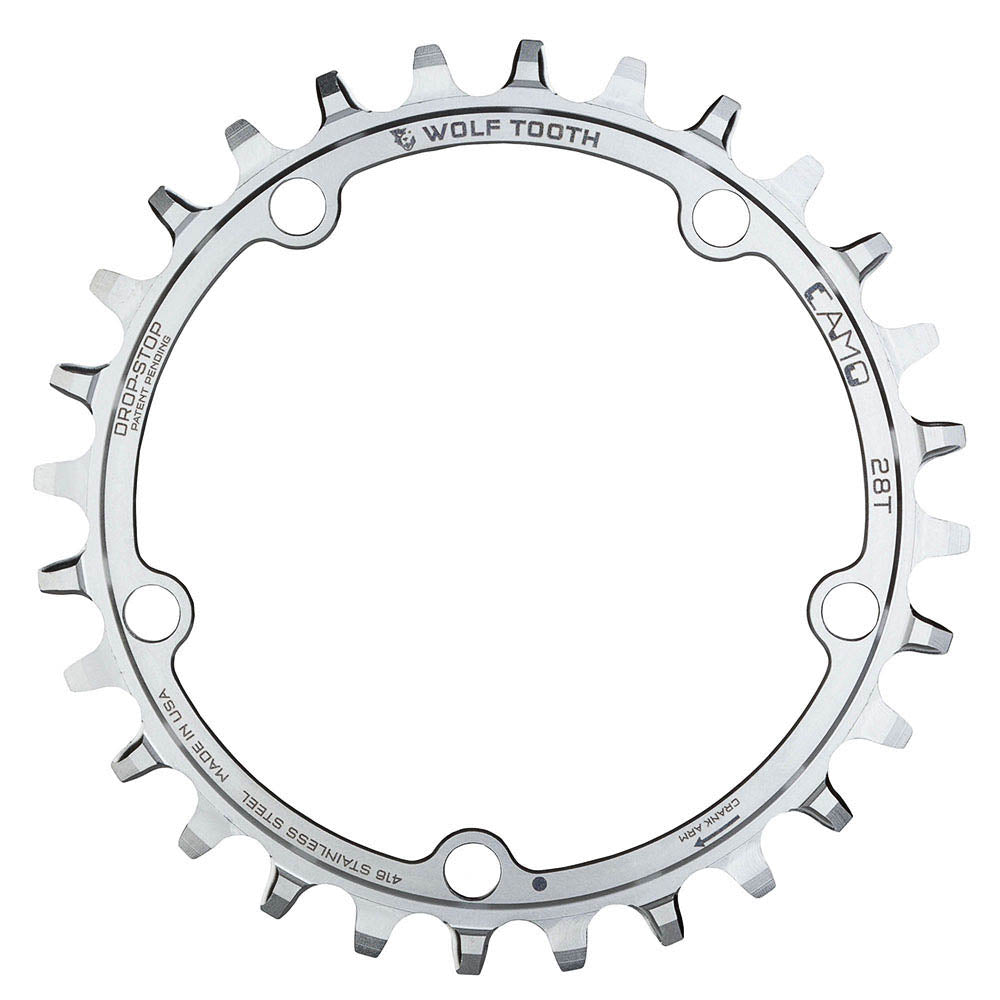

Material: hardened and electropolished 416 stainless steel
Made in USA
