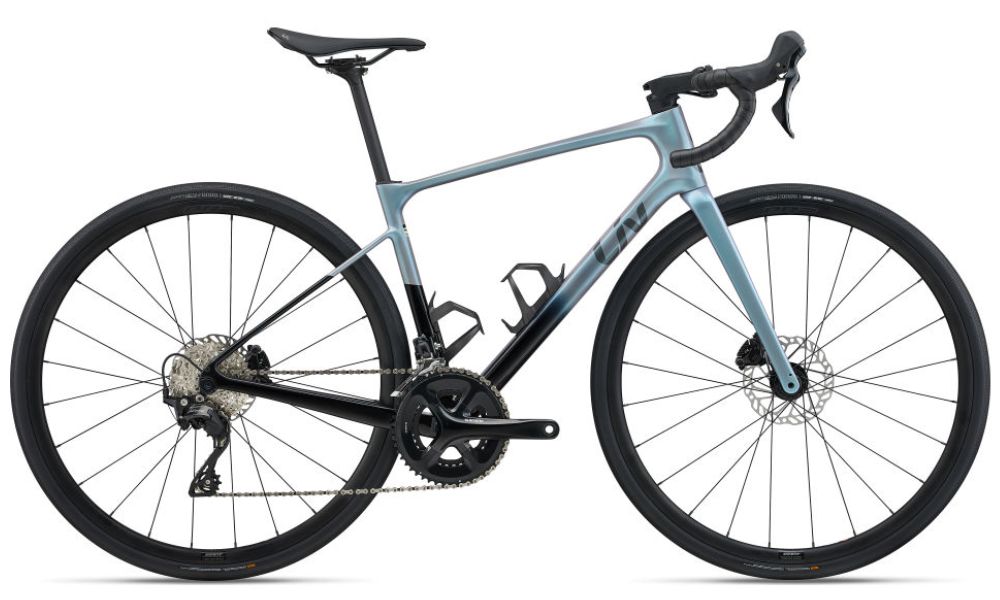

Liv 2025 Avail Advanced 2
The Avail Advanced is that riding buddy who’s up for any adventure on the road—from solo backroad explorations to after-work shop rides to all-day epic rides with friends. Designed for performance and capable on any surface, this road warrior is ready to take you as far as you can go, which is always farther than you think.
Lightweight Advantage
The Avail Advanced delivers lightweight efficiency, thanks to an all-new Advanced-grade composite frame and an Advanced-grade composite fork, which boosts your climbing abilities and makes you virtually uncatchable over long distances.
Superior Compliance
Ride longer without riding harder, with the reengineered frame and fork, optimized for the smoothest, most efficient riding experience. The innovative Liv Contact D-Fuse handlebar and D-Fuse seatpost absorb more road vibrations than round-shaped tubing, without sacrificing efficiency on corners and climbs.
Maximum Control
The Liv Contact D-Fuse handlebar features an ergonomic shape and 8-degree flare drop, for total control on those sunrise-to-sunset rides. Wide, alloy rims are designed for high-volume tubeless tires (up to 38mm), providing predictable handling and stability from asphalt to pavé.
Liv 2025 Avail Advanced 2
Frame
Colour: Prismatic Haze
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork: Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Shock: NA
Drivetrain
Crankset: Shimano FC-RS520, 34/50 XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
Pedals: NA
Chain: KMC X12
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano 105
Front Derailleur: Shimano 105
Derailleur Shifter: Shimano 105
Freewheel/Cassette: Shimano 105, 12-speed, 11x36
Braking System
Brakes: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Wheels
Tyres: Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Wheels/Rims: Giant P-R2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Other
Handlebar: Giant Contact SL D-Fuse, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm
Stem: Giant Contact SL Aerolight XS:70mm, S:80mm, M:90mm, L:90mm
Saddle: Liv Approach
Seat Post: Giant D-Fuse, composite, -5/+15mm offset
Liv 2025 Avail Advanced 2
-
- XXS
-
145 cm
156 cm
-
- XS
-
153 cm 162 cm
-
- S
-
158 cm 169 cm
-
- M
-
165 cm 174 cm
-
- L
-
171 cm 182 cm
| XXS | XS | S | M | L | ||
| A | Seat Tube Length (MM) | 385 | 405 | 435 | 465 | 495 |
| B | Seat Tube Angle | 75.0° | 74.5° | 74.5° | 74.0° | 74.0° |
| C | Top Tube Length (MM) | 500 | 520 | 525 | 535 | 555 |
| D | Head Tube Length (MM) | 110 | 125 | 145 | 165 | 185 |
| E | Head Tube Angle | 69.8° | 71.0° | 71.0° | 71.0° | 72.0° |
| F | Fork Rake (MM) | 50 | 50 | 50 | 50 | 50 |
| G | Trail (MM) | 76.0 | 68.0 | 68.0 | 68.0 | 61.0 |
| H | Wheelbase (MM) | 989 | 995 | 1002 | 1007 | 1013 |
| I | Chain Stay Length (MM) | 420 | 420 | 420 | 420 | 420 |
| J | Bottom Bracket Drop (MM) | 75 | 75 | 73 | 73 | 73 |
| K | Stack (MM) | 510 | 528 | 547 | 566 | 589 |
| K | StackToHandlebar (MM) | 588 | 606 | 626 | 647 | 668 |
| L | Reach (MM) | 363 | 373 | 373 | 373 | 381 |
| L | ReachToHandlebar (MM) | 408 | 420 | 429 | 439 | 449 |
| M | Stand Over Height (MM) | 683 | 712 | 737 | 762 | 789 |
| O | Stem Length (MM) | 70 | 70 | 80 | 90 | 90 |
| P | Crank Length (MM) | 165 | 165 | 170 | 170 | 172 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
