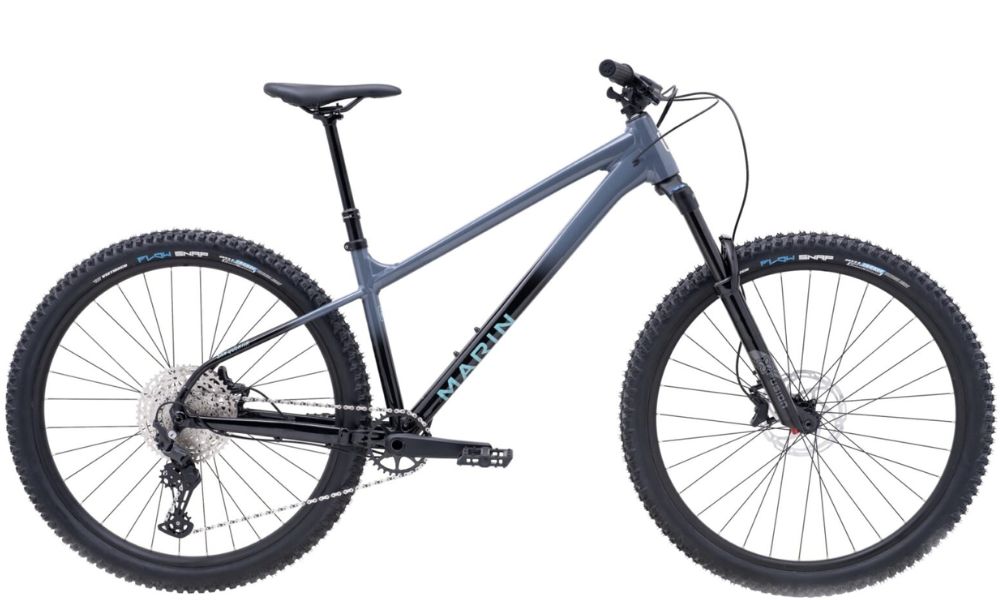

Marin 2024 San Quentin 2
Dirt jump DNA with all the speed and roll-over of 29" wheels. The Marin San Quentin 2 29 is our mid-pack model that blends bang-for-your-buck value with kick-ass components. We’ve packed in 29" wheels, a TranzX dropper post, X-Fusion suspension fork, Tektro brakes, Vee Tire rubber and plenty of awesome Marin kit to create a bike you’ll love to rip, but that won’t shred your budget. Dirt jump DNA with all the speed and roll-over of 29" wheels.
Marin 2024 San Quentin 2
Frame
Colour: Blue/Black
Frame: All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
Fork: X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset
Shock: NA
Drivetrain
Crankset: Marin Forged Alloy w/ Hollow Spindle and Integrated Steel 32t Narrow Wide Chanring, Boost Spacing
Pedals:
Chain: Shimano CN-LG500
Bottom Bracket: External Sealed Cartridge Bearing
Rear Derailleur: Shimano Deore, 11-Speed, SGS
Front Derailleur: NA
Derailleur Shifter: Shimano Deore, 11-Speed, SL-5100R
Freewheel/Cassette: Shimano CS-5100-11, 11-51T
Braking System
Brakes: Tektro M535 4-Piston Hydraulic, 180mm Rotor
Brake Levers: Tektro M535
Wheels
Tyres: Vee Tire Co, Flow Snap, 29x2.6", MPC Compound, Wire Bead
Wheels/Rims: Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
Hubs: [F] Shimano HF-MT400B, 110x15mm [R] Shimano HF-MT400B, 148x12, , Standard Freehub Body
Other
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem: Marin 3D Forged Alloy, 35mm
Saddle: Marin Speed Concept
Seat Post: TranzX, YSP18, 1x Remote, All Sizes 170mm Travel, 30.9mm
Marin 2024 San Quentin 2
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 632 | 636 | 645 | 650 |
| Reach | 422 | 450 | 470 | 500 |
| Headtube Angle | 64° | 64° | 64° | 64° |
| Headtube Length | 115 | 120 | 125 | 130 |
| Seattube Angle | 77° | 77° | 77° | 77° |
| Seattube Length | 330 | 380 | 410 | 420 |
| Toptube Effective | 568 | 596 | 619 | 650 |
| BB Height | 316 | 316 | 316 | 316 |
| BB Drop | 50 | 50 | 50 | 50 |
| Chainstay | 430 | 430 | 430 | 430 |
| Wheelbase | 1182 | 1212 | 1236 | 1268 |
| Standover Height | 650 | 683 | 688 | 695 |
| Fork Offset | 44 | 44 | 44 | 44 |
| SeatPost Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Stem Length | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 |
All lengths in millimeters
