    Specialized 2023 Turbo Levo Alloy
    Specialized 2023 Turbo Levo Alloy
    Specialized 2023 Turbo Levo Alloy
    Specialized 2023 Turbo Levo Alloy
    Specialized 2023 Turbo Levo Alloy
    Specialized 2023 Turbo Levo Alloy

    Specialized 2023 Turbo Levo Alloy

    The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

    It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

    More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

  • Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

    •

  • The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.

    •

  • A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.

    •

  • Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

    •

  • Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.

    •

  • The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

    •

    Specialized 2023 Turbo Levo Alloy

    Frame

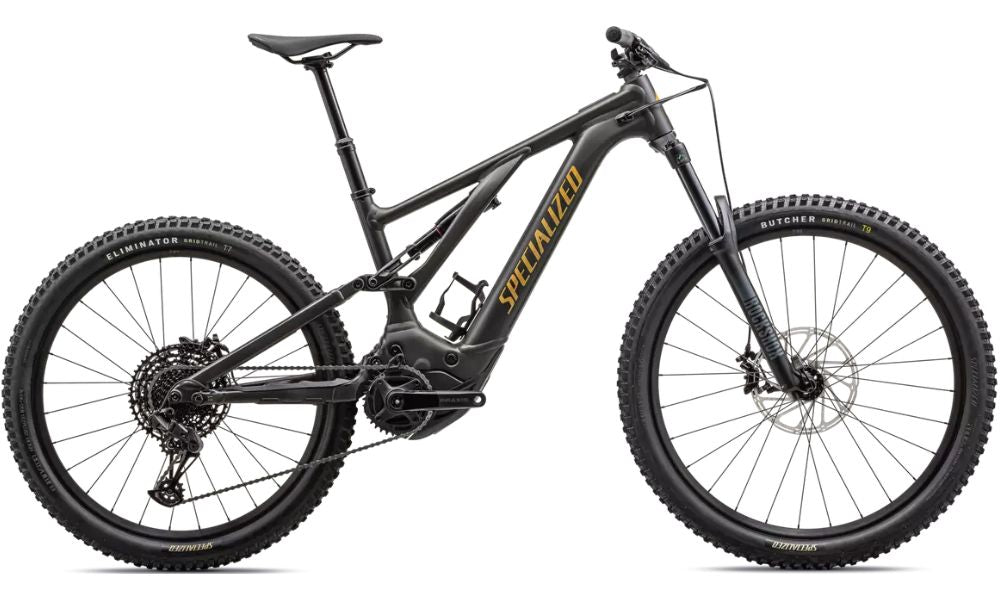

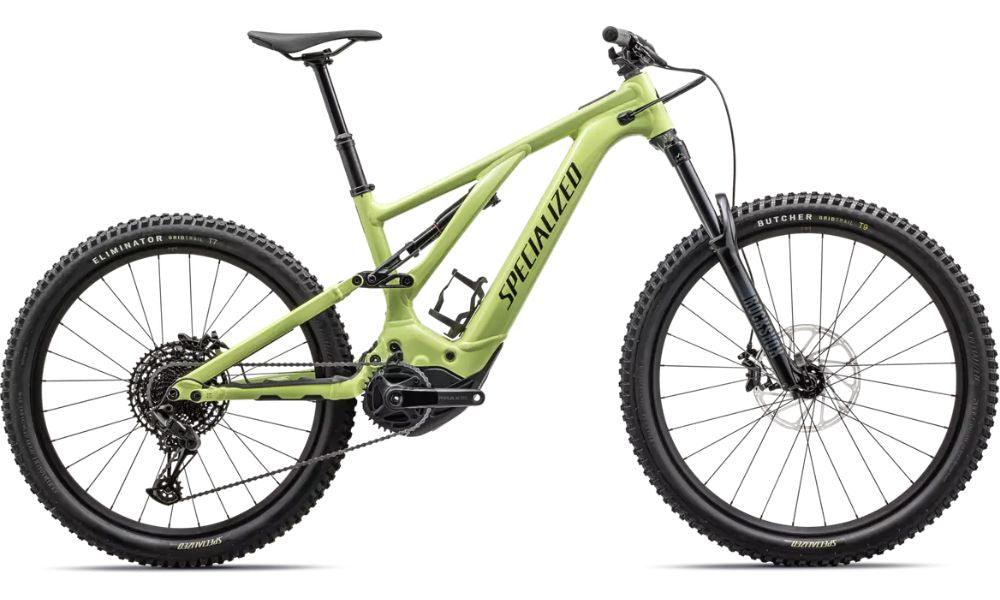

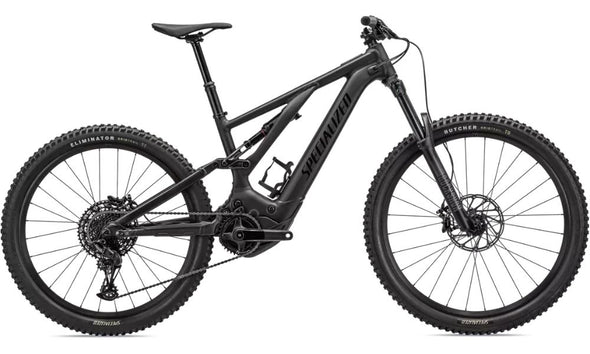

    Colour: Satin Dark Moss Green/Harvest Gold, Black/Light Silver/Black, Gloss Limestone/Black
    Frame: Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
    Fork: RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
    Shock: RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm



    Drivetrain

    Drive Unit: Specialized 2.2 Custom Rx Trail Tuned Motor
    Battery: Specialized M3-700, Integrated battery, 700Wh
    Crankset: Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
    Pedals:
    Chain: SRAM NX Eagle, 12-speed
    Bottom Bracket: NA
    Rear Derailleur: SRAM SX Eagle, 12-speed
    Front Derailleur: NA
    Derailleur Shifter: SRAM SX Eagle, 12-speed
    Freewheel/Cassette: SRAM NX Eagle, 12-speed, 11-50t



    Wheels

    Tyres: [F] Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6" [R] Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
    Wheels/Rims: Specialized 29, hookless alloy, 30mm inner width, tubeless ready
    Hubs: [F] Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h [R] Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h



    Braking System

    Brakes: [F] SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm [R] SRAM Guide RE, 200mm
    Brake Levers:



    Other

    Handlebar: Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
    Stem: Alloy Trail Stem, 35mm bar bore
    Saddle: Body Geometry Bridge Saddle, steel rails
    Seat Post: TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
    UI/Remtoe: Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
    Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V



    Specialized 2023 Turbo Levo Alloy

    S1 S2 S3 S4 S5 S6
    Crank Length 160 160 160 160 160 160
    Handlebar Width 780 780 780 780 780 780
    Stem Length 40 40 40 40 50 50
    Saddle Width 155 155 143 143 143 143
    Seatpost Length 100 125 150 170 170 200
    Stack 605 617 626 635 644 653
    Reach 412 432 452 477 502 532
    Headtube Length 105 105 115 125 135 145
    Headtube Angle 64.5 64.5 64.5 64.5 64.5 64.5
    BB Height 352 350 350 350 350 350
    BB Drop 25 27 27 27 27 27
    Trail 130 130 130 130 130 130
    Fork Length (full) 557 567 567 567 567 567
    Fork Rake/Offset 44 44 44 44 44 44
    Front Center 738 760 784 814 843 878
    Chainstay Length 442 442 442 442 442 442
    Wheelbase 1179 1200 1225 1255 1284 1318
    Bike Standover Height 752 776 783 787 788 790
    Seat Tube Length 380 390 405 425 445 465
    Seat Tube Angle 78 77.2 76.7 76.2 76.2 76.2
    Max Seatpost Insertion 210 220 240 255 275 295
    Min Seatpost Insertion 80 80 80 80 80 80
    *Please note that our specifications may be impacted by running substitution changes, we highly recommend confirming the specifications of our products at the time of sale. *Recommended Retail Prices are subject to change without notice and may vary from store to store depending on freighting and assembly costs. Please read our Terms & Conditions

    *Giant & Liv Bicycles are available for purchase online, but due to warranty regulations, must be shipped to qualified Giant dealers, as bicycles must be assembled by a qualified bike mechanic in an approved store - This is an international policy and usually will require an additional fee to build the bike. This will be confirmed by one of our online staff after purchase of the bike.

    *Specialized Bicycles are available for home delivery nation wide.
